- Size: 4
- Place of Origin: shangdong
- Brand Name: baixin

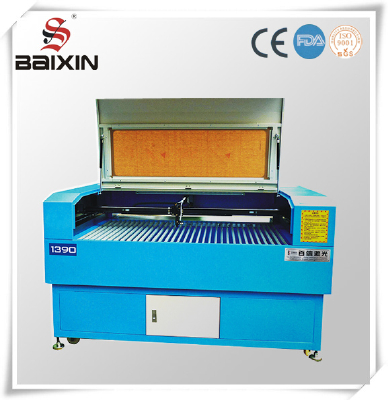

- Model Number: BX-1390
- Weight: 350.000 kg
Applicable material:
Ceramic, Glass, Wood, Bamboo, Marble, Organic glass, Acrylic, Crystal, Plastic, Garments, Paper, Leather, Rubber and other nonmetal materials
Features:
1 Imported linear guide rail assures stability and high precision.
2 USB interface with large memory device can engrave multiple files, download data conveniently & quickly and work offline.
3 Red spot positioning system makes it easy to fix position.
4 High grade laser tube has strong beam and the imported focus lens' life is long.
5 Auto-supplyment for light declining during engraving to ensure the same results in different area.
6 Equipped with honeycomb or blade platform, it's good for paper location.
7 Be compatible with PLT/BMP/DSB/DST/DXF and other related formats.
- Size: 4
- Place of Origin: shangdong
- Brand Name: baixin
- Model Number: BX-1390
- Weight: 350.000 kg
Model | BX-1390 |
Working Area(mm) | 1300*900 |
Laser Power | 80-150W |
Engraving Speed | 1-60000mm/min |
Cutting Speed | 1-10000/mm/min |
Cutting Thickness | 0-20mm (depends on materials ) |
Min. Shaping Character | Chinese Character 2*2mm English Letter 1*1mm |
Graphic format | PLT, BMP, DSB, DST, DXF,etc |
Resolution | <0.01mm |
Location Precision | <0.01mm |
Power (Without Laser Tube) | <1000W |
Operating Temperature | 5-40 degree |
Operating Humidity | 5-90% Free of condensed water |
