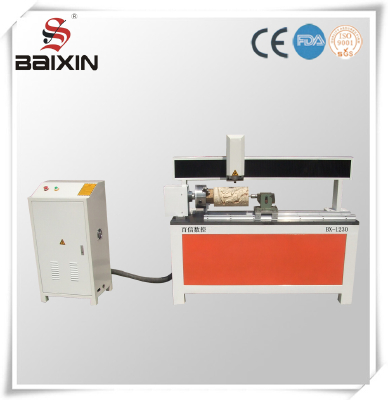

CNC machine for columns processing cnc router woodworking machine BX-1200

CNC machine for columns processing cnc router woodworking machine BX-1200

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100000 Sets per Year
  • Port: Guangzhou/Qingdao port
  • Payment Terms: L/C,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2008-07-24
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  4
  • Place of Origin:  shangdong
  • Brand Name:  baixin
  • Model Number:  BX-1200
  • Weight: 400.000 kg

Brief Introduction:

These series economical Woodworking Machine uses rack transmission and double side large motor driver. Therefore the speed is faster compared to common CNC Router Machine. They are always seen in family workshops and small/ medium woodworking factory.



Applicable Materials & Industries:

Applicable Materials: MDF/ wood/ wave panel/aluminum composite panel/ inscribed wooden slip /PVC board etc.

Applicable Industries: Wood Furniture(wood door/ folding screen/ artificial fans & windows/ game cabinet/ mahjong table/ computer desk etc) large scale architecture mould/ aerospace wood mould/ automotive foam mould/ musical instrument tri-dimensional engraving/ decoration/upholster(handwriting\ art frame)and other related industries.



Features

1 Imported bidirectional guide rail leads to high accuracy.

2 2.2 Kw water-cooled spindle can use for a long time.

3 Gantry mode movement to make sure long-time use and high precision.

4 Continue to engrave after point-break and bits/knife-breaking. Hold more than 9 points

5 Germany double nuts automatic ball screw with imported linear guide rail.

6. High power water-cooling spindle has low noisy and high rotating speed, making it cut easier to reach to 20-30mm.

7. Professional engraving software. Such as CorelDraw, Type3, Artcam, Castmate, Proe, Artcut and other CAD/CAM software.



  • Size:  4
  • Place of Origin:  shangdong
  • Brand Name:  baixin
  • Model Number:  BX-1200
  • Weight: 400.000 kg

Model

BX-1200

X/Y axis working area(mm)

200*1200

Z axis working area

50-200mm

Platform Size(mm)

1710mm

Max. Working Speed

4-5.5m/min

Max. Engraving Speed

2-3m

Resolution

0.005mm

Repositioning Accuracy

0.05mm

Command

G Code*. U00*. Mmg*. Plt

Software Surroundings

Windows98/2000/XP

Power

AC220V/50/60Hz

Spindle Power

2.2Kw

Spindle Speed

0-24000rpm

Work Mode

Stepper

Applicable MaterialsGranite/ marble/ bluestone/ sandstone/ wood/ glass/ crystal etc

Notice: Further notice of any change of the picture & specifications may not be given
